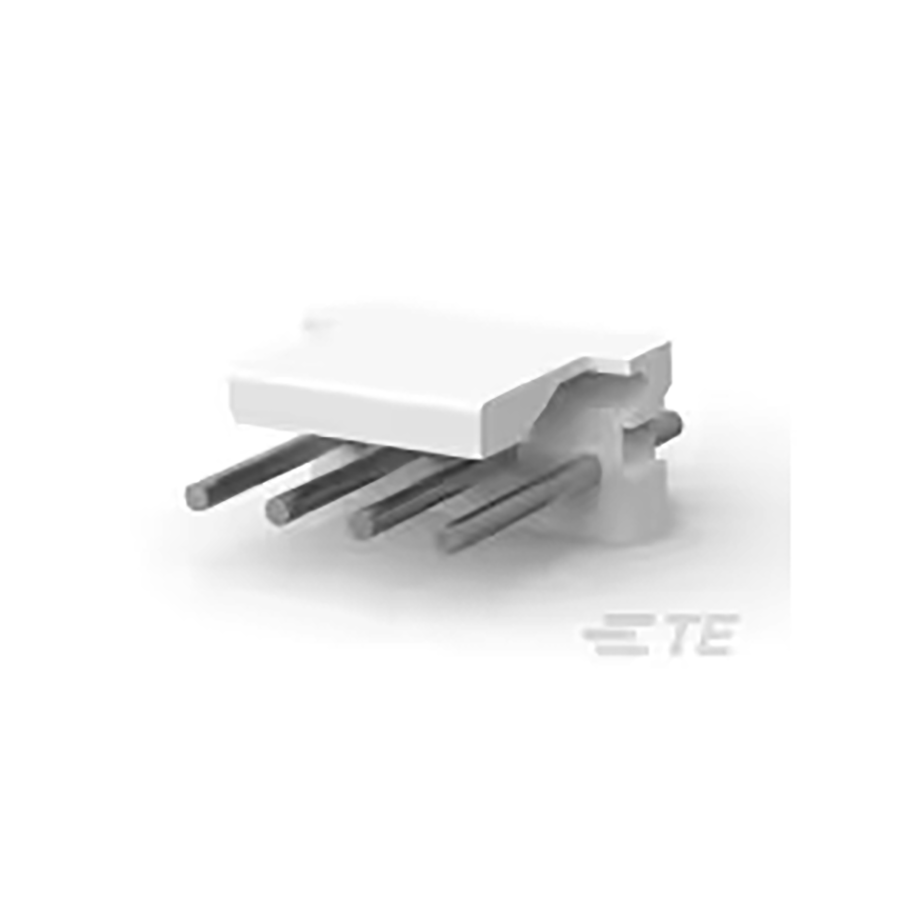

640388-4 TE Connectivity | PCBX Electronics

640388-4

Manufacturer:

TE Connectivity

Mfr.Part #:

640388-4

Datasheet:

Description:

Headers and Wire Housings Through Hole Header Number of Positions:4 Pitch:3.9624 mm

Parameter	Value
Length	15.8496 mm
Termination	Solder
Max Operating Temperature	105 °C
Min Operating Temperature	-55 °C
Height	10.79 mm
Packaging	Bulk
Voltage Rating	600 V
Depth	7.62 mm
Radiation Hardening	No
RoHS	Compliant
REACH SVHC	No SVHC
Contact Plating	Tin
Lead Length	3.18 mm
Contact Material(Contact Finish)	Copper
Pitch	3.9624 mm
Current Rating	7 A
Flammability Rating	UL94 V-0
Approvals	CSA
Orientation	Vertical
Operating Supply Voltage	600 V
Lifecycle Status	Production (Last Updated: 2 weeks ago)
Color	Natural, White
Gender	Male
Number of Contacts	4
Connector Type	Header
Number of Positions	4
Number of Rows	1
Housing Material	Polyester
Fastening Type	Friction
Circuit Application	Power
Connector System	Wire-to-Board
Contact Resistance	3 mΩ
Max Voltage Rating (AC)	600 V
Contact Current Rating	7 A
Housing Color	Natural, White
Plating	Tin
shrouded	No
Contact Mating Length	10.16 mm
PCB Thickness	1.6002 mm
Plating Thickness	2.54 µm
Contact Gender	Male
Number of Power Positions	4
Mating Post Length	10.16 mm
Underplate Material	Nickel
Manufacturer Lifecycle Status	ACTIVE (Last Updated: 2 weeks ago)
Sealable	No
Contact Retention	Without
Termination Post Length	3.18 mm

Distributors

pcbx

Unit Price$0.18809

Ext.Price$0.18809
